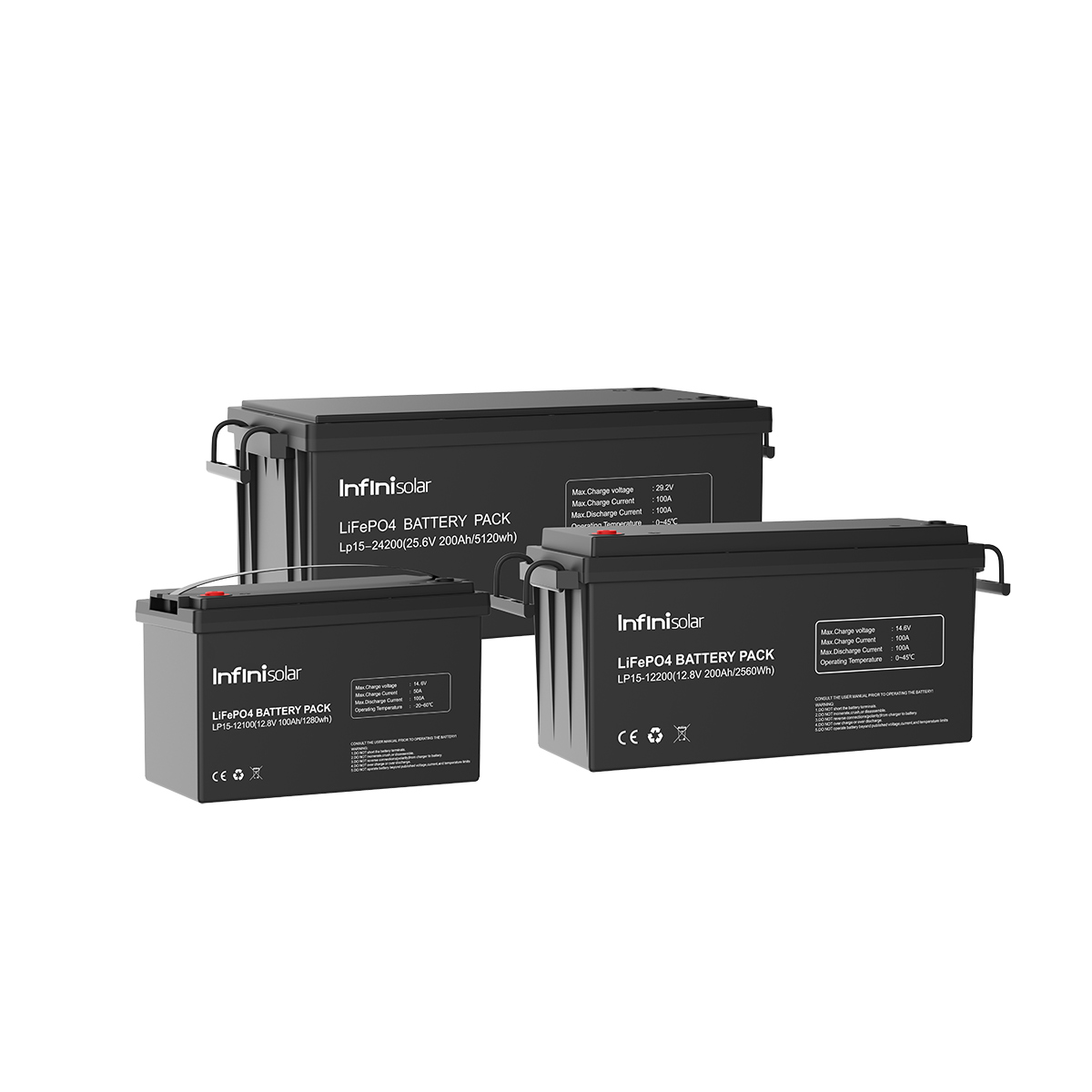

INF-LFS LiFePO4 Battery 12.8/25.6V-100/120/200/240Ah
Lithium (LFP) Battery | 1280Wh 1536Wh 2560Wh 3072Wh 2560Wh 3072Wh

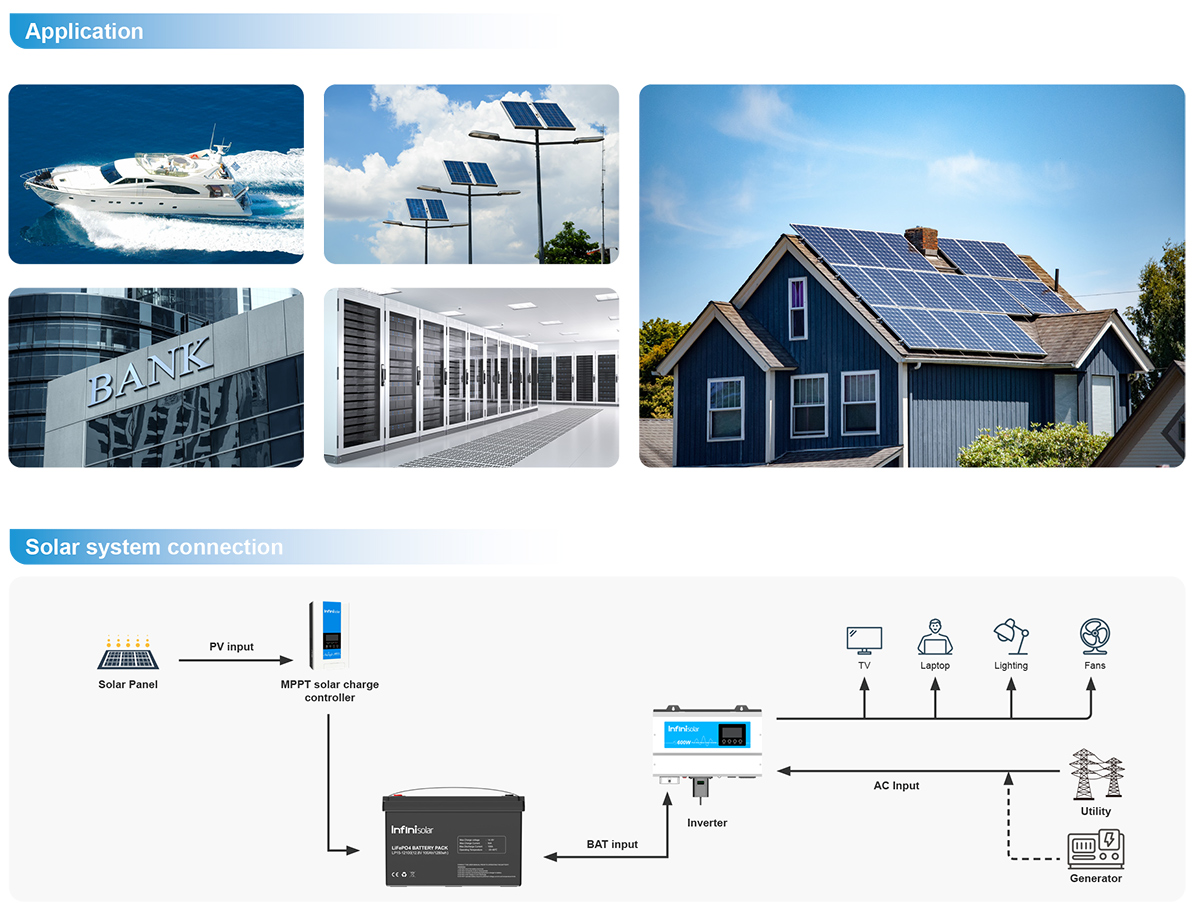

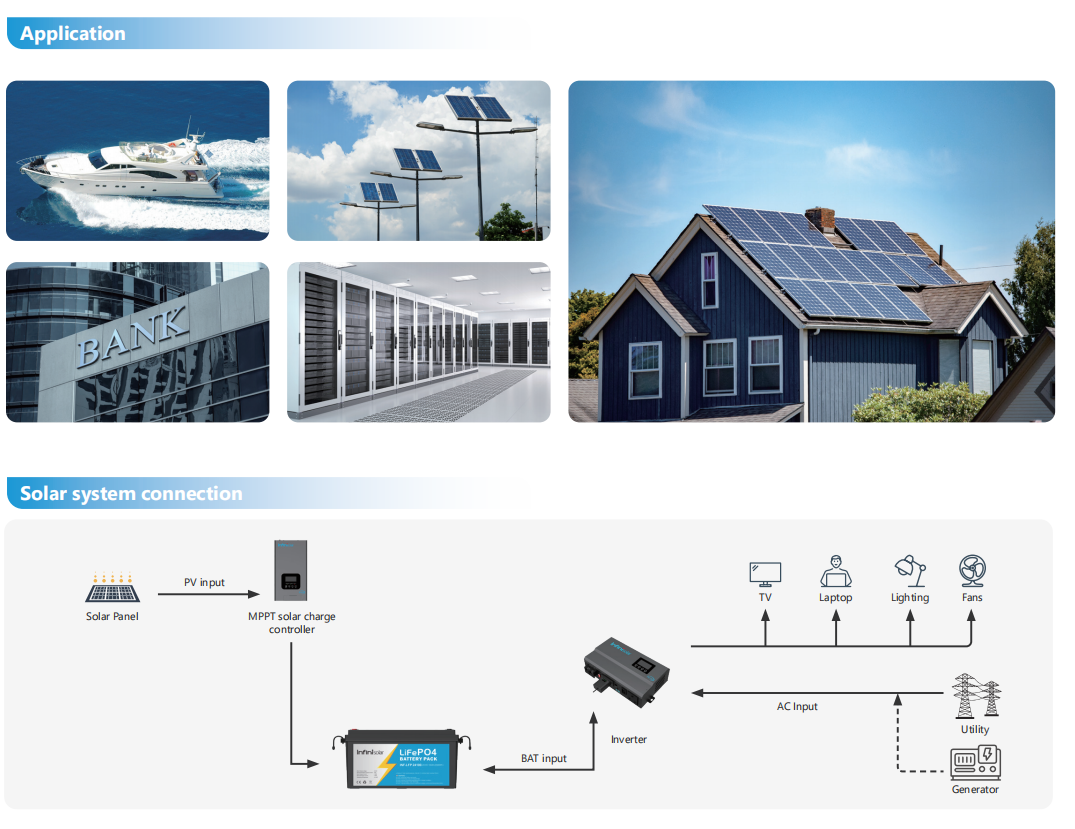

The LP1500 Series LiFePO4 battery is fit for E-mobility, Energy Storage System, Defense & Security, telecom outdoor applications,renewable energy systems, and other harsh environment applications.
Description
Product Description
■ 4000 cycles @ 80% DOD, 25°C for effectively lower total of ownership cost
■ Safe, reliable and long life
■ Support series or parallel connection
■ Battery Management System (BMS) is incorporated against abuse
■ Superior charge/discharge efficiency
■ Low maintenance batteries with stable chemistry
■ Lithium batteries provide more Wh/Kg while also being up to 1/3 the weight of its SLA equivalent
■ Support Bluetooth and APP to view battery information (optional)

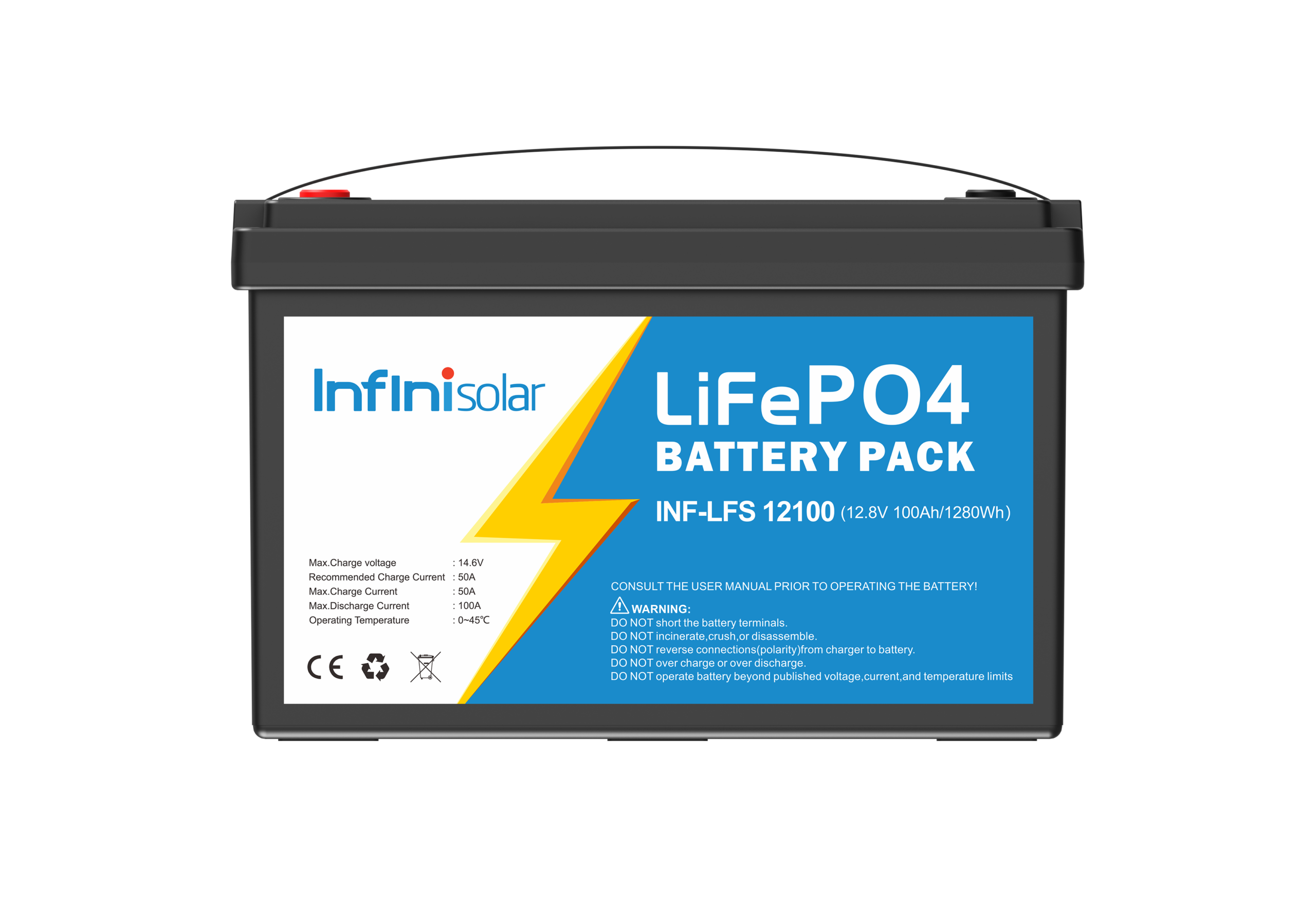

| MODEL | INF-LFS-12100 | INF-LFS-12120 | INF-LFS-12200 | INF-LFS-12240 | INF-LFS-24100 | INF-LFS-24120 | |
| Nominal Voltage | 12.8V | 25.6V | |||||
| Nominal Capacity | 100Ah | 120Ah | 200Ah | 240Ah | 100Ah | 120Ah | |
| Nominal Energy | 1280Wh | 1536Wh | 2560Wh | 3072Wh | 2560Wh | 3072Wh | |
| Life Cycles | 6000 cycles @ 80% DOD, 25°C | ||||||
| Standard Charge Voltage | 14.6V | 29.2V | |||||
| End Of Discharge Voltage | 10V | 20V | |||||
| Standard Method | Charge | 20A | 24A | 40A | 48A | 20A | 24A |
| Discharge | 50A | 60A | 100A | 100A | 50A | 60A | |
| Maximum Continuous Current | Charge | 50A | 60A | 100A | 100A | 50A | 60A |
| Discharge | 100A | 100A | 100A | 100A | 100A | 100A | |
| BMS Cut-Off Voltage | Charge | 15.4 V (3.85V/Cell) | 30.8 V (3.85V/Cell) | ||||
| Discharge | 9.2 V (2s) (2.3V/Cell) | 18.4 V (2s) (2.3V/Cell) | |||||
| Temperature | Charge | 0 ~ 45°C | |||||
| Discharge | -10 ~ 45°C | ||||||
| Storage Temperature | 0~35°C | ||||||
| Shipment voltage | ≥12.8V | ≥25.6V | |||||
| Case Material | ABS+PC | ||||||

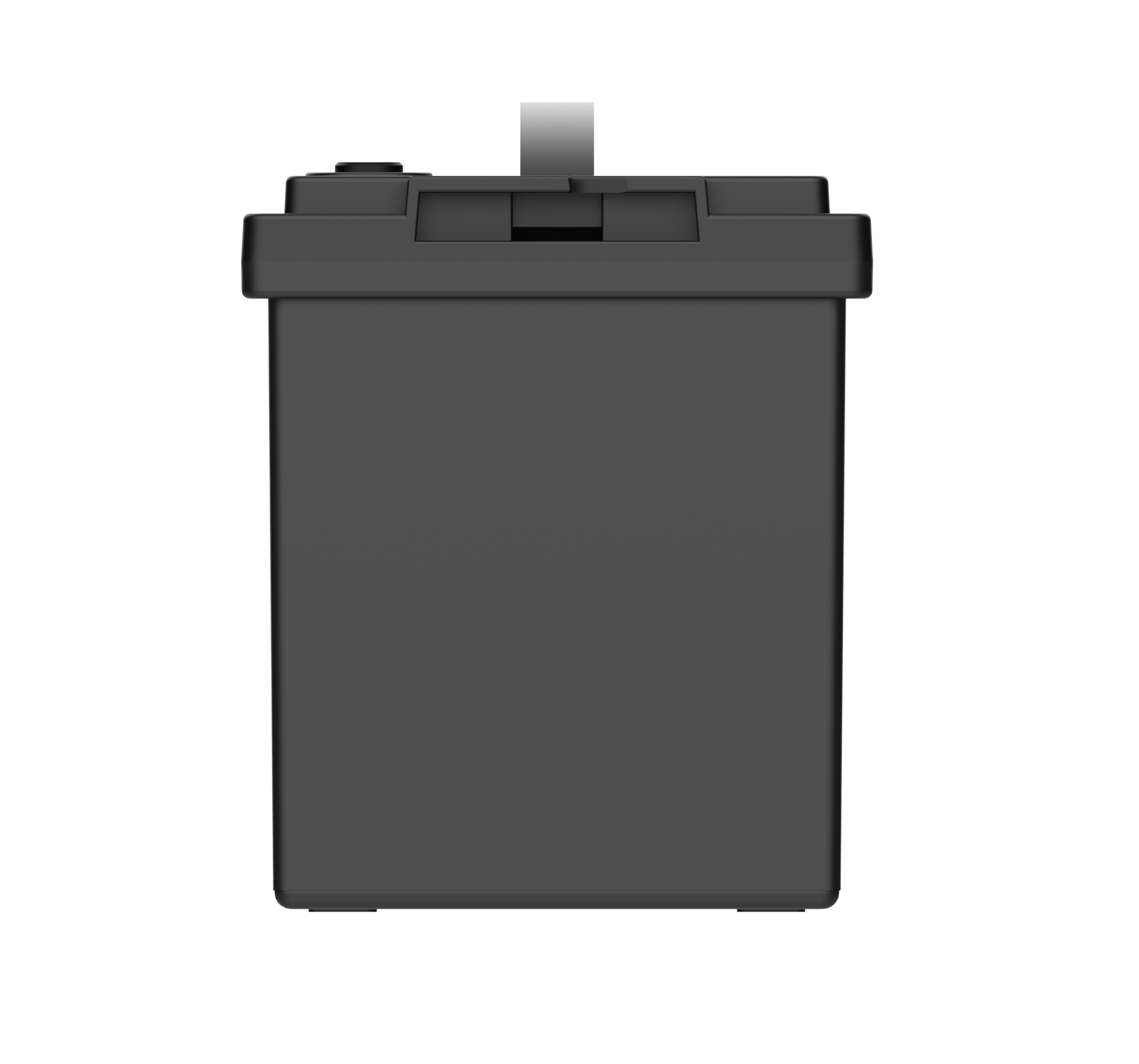

| Machine Dimension (H*W*D) (mm) | 339*185*218 | 502*186*243mm | 502*186*243 | 522*238*218 | 502*186*243 | 522*238*218 | |
| Package Dimension (W*H*D) (mm) (carton box) | 385*230*260 | 517*221*279mm | 520*215*280 | 530*270*270 | 520*215*280 | 530*270*270 | |
| N.W (kg) | 16 | 16 | 21 | 29 | 20 | 29 | |
| G.W (kg) (carton box) | 17 | 17 | 22 | 30.5 | 21 | 30.5 | |
| Charge retention and capacity recovery capability | Standard charge the battery, and then put aside at room temperature for 28d or 55°C for 7d, Charge retention rate≥90%, Recovery rate of charge≥90 | ||||||
