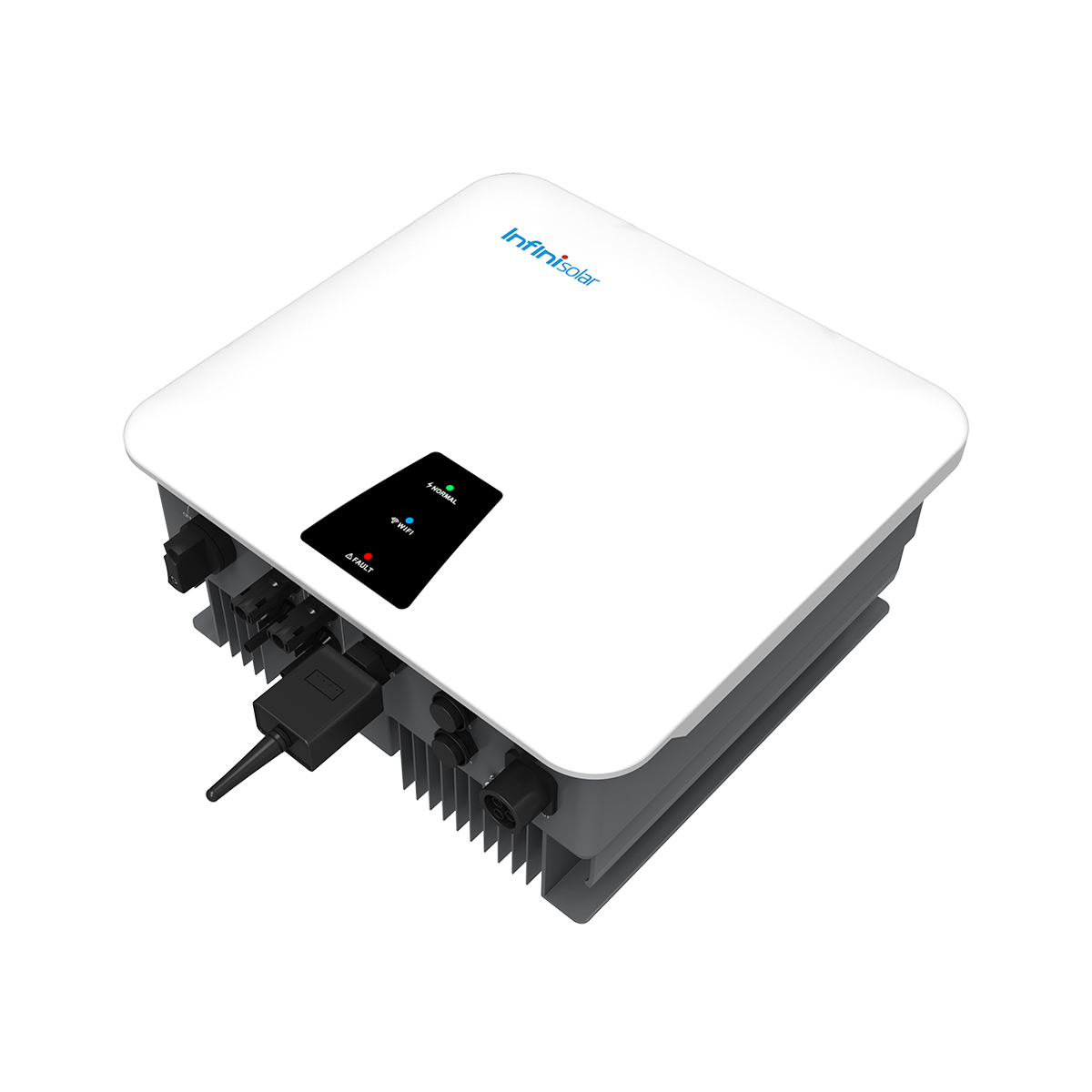

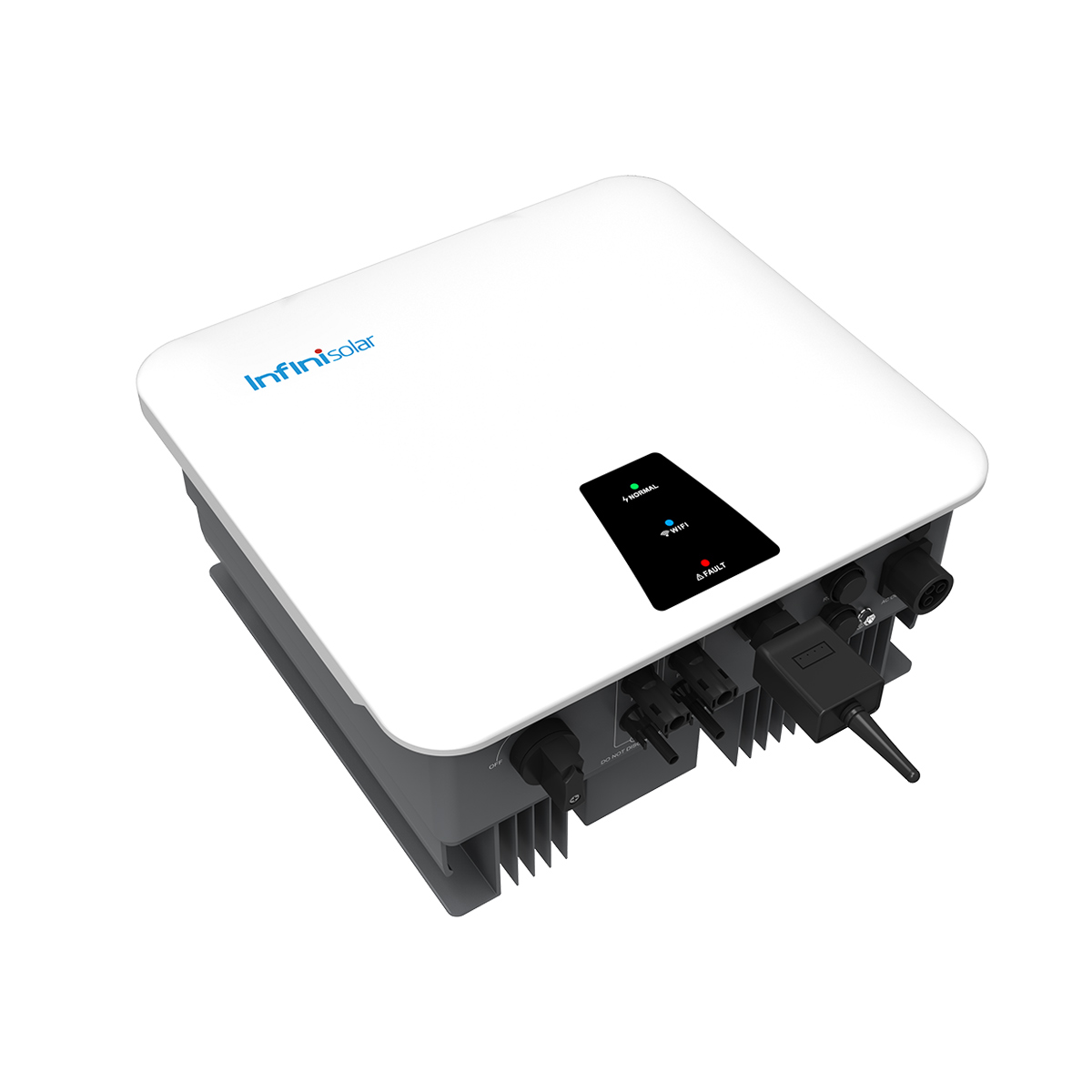

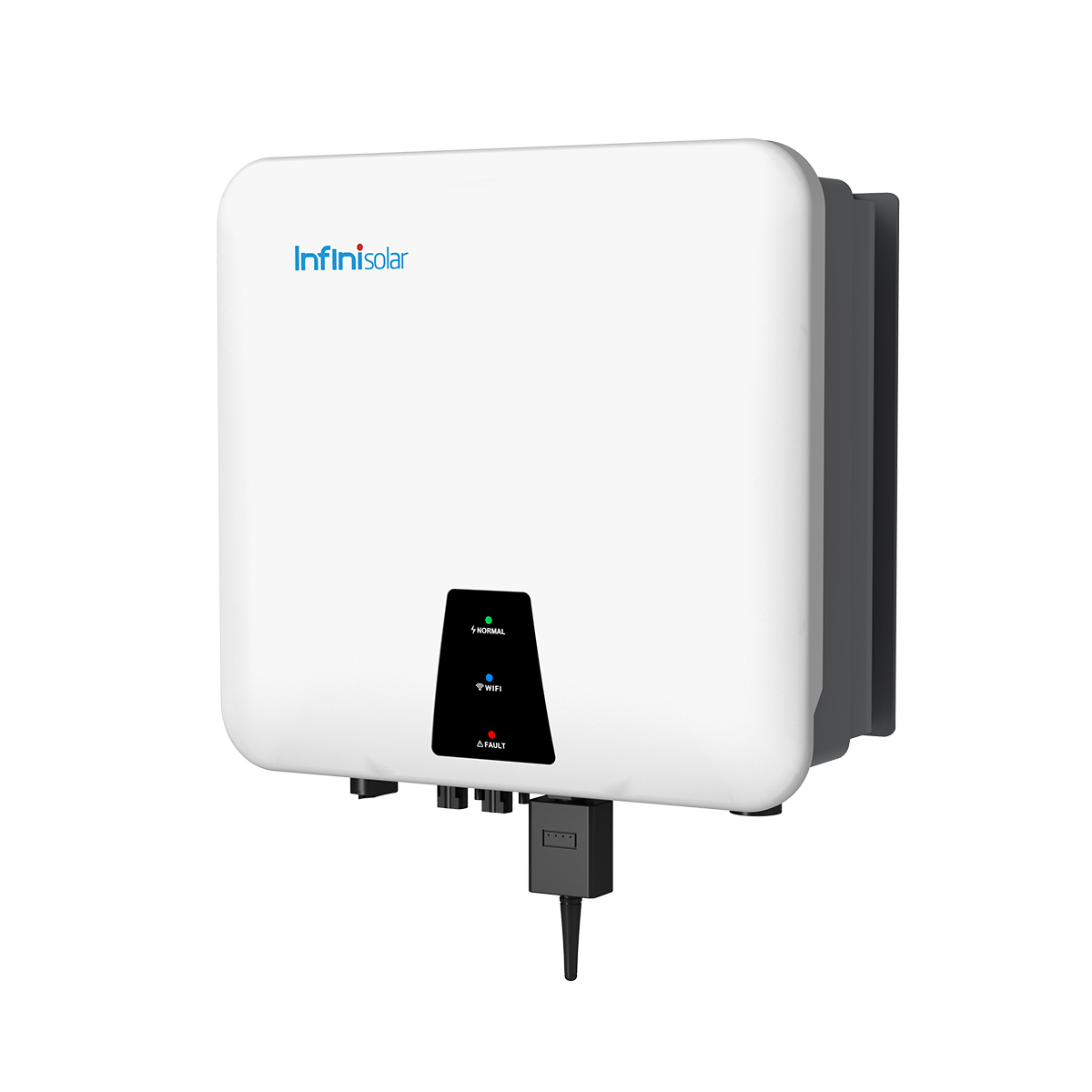

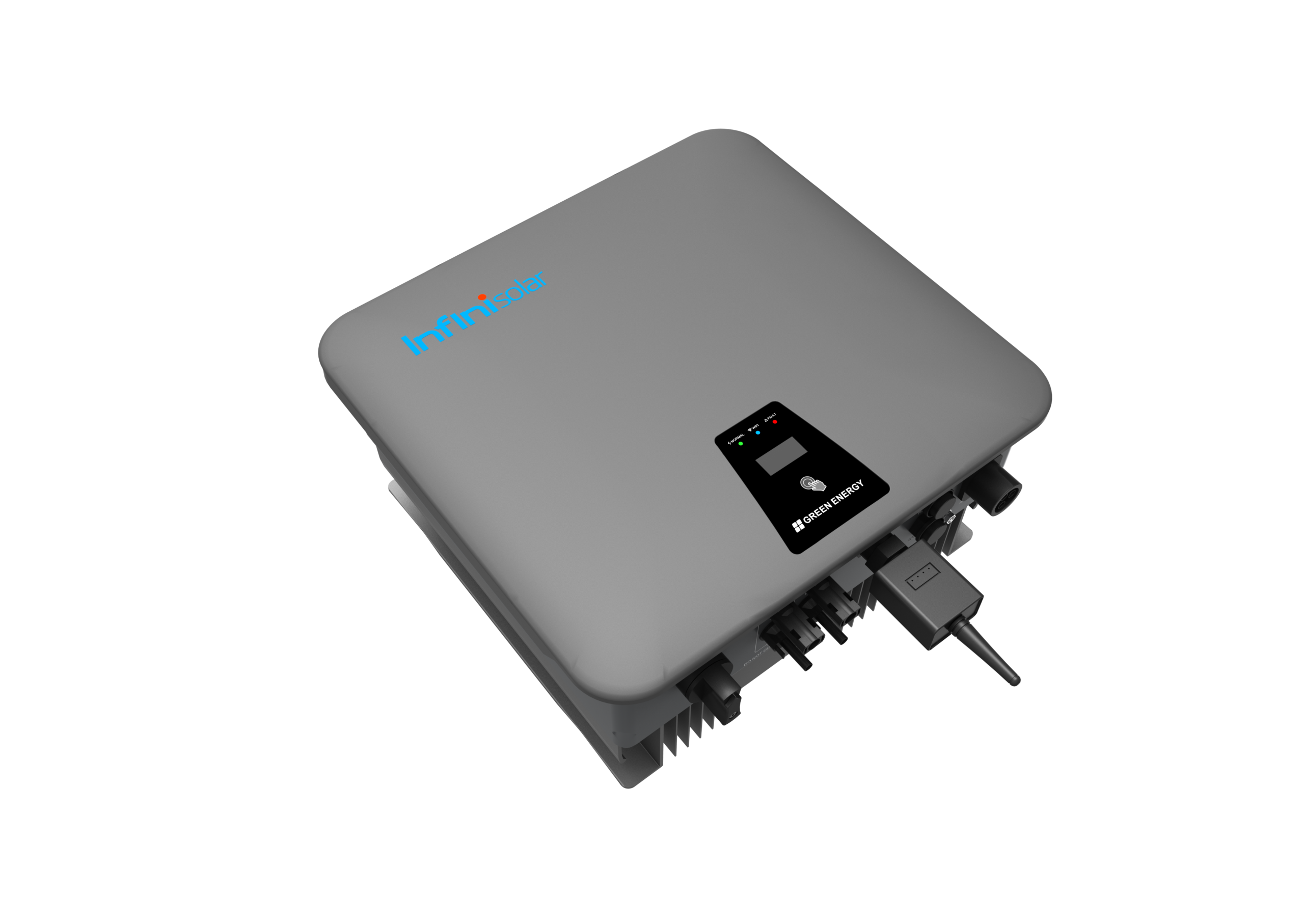

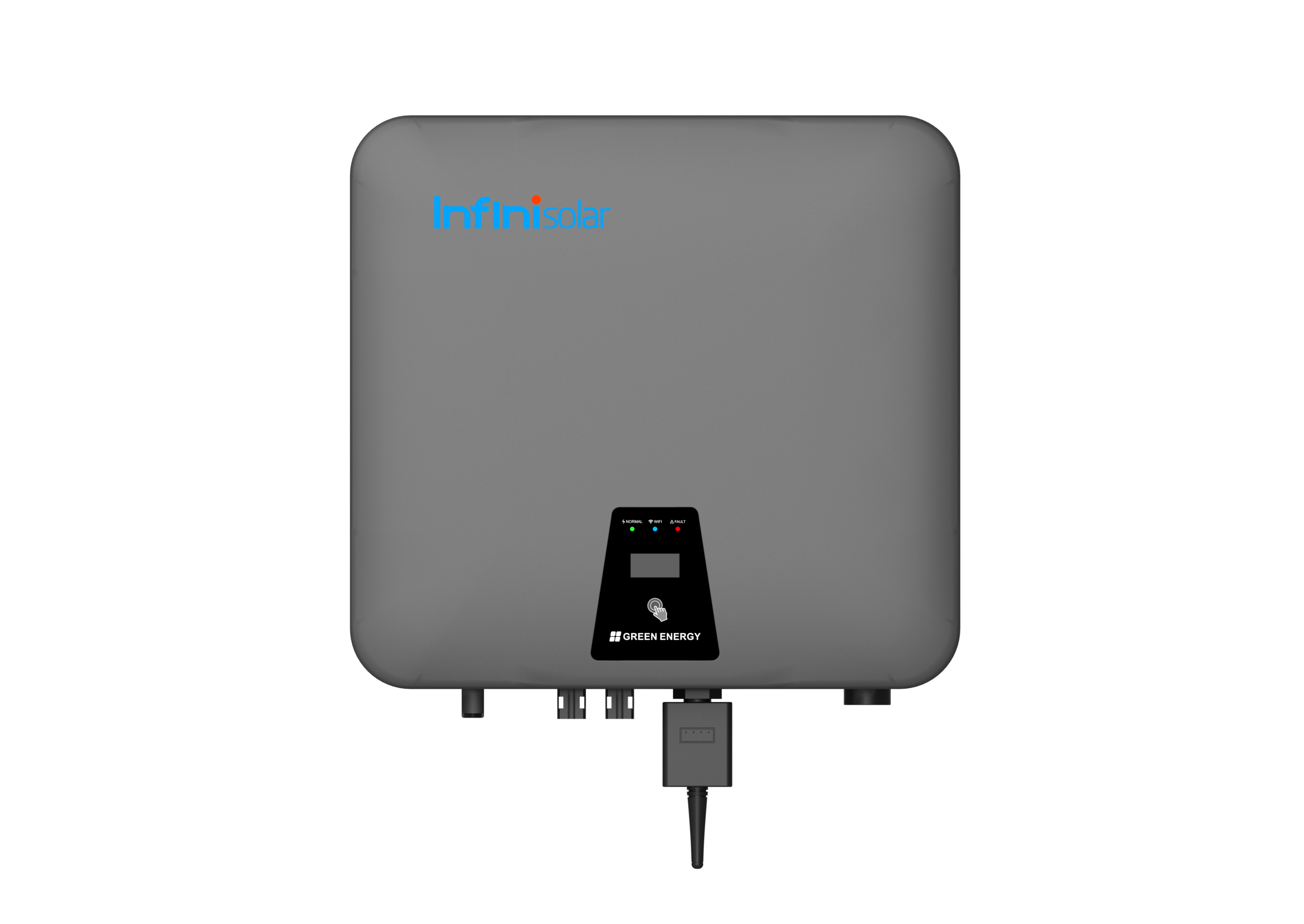

HP590 Grid-Tie Inverter 3-6KW
ON GRID SOLAR INVERTER 40~550V
HP590 series PV inverters take full account of the needs of end customers, with excellent performance at the same time, use LED as inverter status display, effectively improve product life.
Using DSP digital control,could afford wide grid voltage range, have a full range of protection features; to maximize the benefits at the same time, greatly enhance the reliability of the product.
Description
Product Description
■ High Frequency On Grid Solar Inverter
■ MPPT efficiency up to 99.50%
■ Multiple communications: WIFI etc
■ Monitoring inverters freely via mobile phonese APP
■ Fanless low-noise design
■ IP66 water-proof and dust-proof
| MODEL | HP590-3000M | HP590-3600M | HP590-4200M | HP590-4600M | HP590-5000M | HP590-6000M |
| Rated AC output power | 3000W | 3600W | 4200W | 4600W | 5000W | 6000W |
| PV INPUT(DC) | ||||||
| Maximum recommended DC power | 3900W | 4700W | 5460W | 5980W | 6500W | 7800W |
| Nominal DC operating voltage | 360V | |||||
| Maximum DC voltage | 550V | |||||
| Start voltage | 50V | |||||
| MPPT voltage range | 40~550V | |||||
| Maximum input current | 16A/16A | |||||
| No.of MPP tracker/ strings per MPP tracker | 2/1 | |||||
| DC connection | H4/MC4 | |||||
| GRID OUTPUT(AC) | ||||||
| Nominal AC output power | 3000W | 3600W | 4200W | 4600W | 5000W | 6000W |
| Max. AC output power | 3000VA | 3600VA | 4200VA | 4600VA | 5000VA | 6000VA |
| AC grid frequency | 50/60Hz ±5Hz | |||||
| Maximum output current | 13.6A | 16A | 19A | 20.9A | 22.7A | 27.2A |
| AC nominal voltage | 220V/230V/240V | |||||
| AC voltage range | 180-280V | |||||
| Total harmonic distortion (THDi) | <3% | |||||
| Rate power factor | 1 | |||||
| Power factor adjustable range | 0.8 leading ~ 0.8 lagging | |||||
| AC grid connection type | L+N+PE | |||||
| EFFICIENCY | ||||||
| Maximum efficiency | 98.0% | 98.0% | 98.1% | 98.1% | 98.2% | 98.2% |
| Euro-efficiency | 96.8% | 96.8% | 97.0% | 97.0% | 97.2% | 97.2% |
| MPPT efficiency | 99.5% | |||||
| Self-Consumption night | <1W | |||||
| PROTECTION DEVICES | ||||||
| Output over current protection | Yes | |||||
| Output AC overvoltage protection | Yes | |||||
| DC reverse polarity protection | Yes | |||||
| DC switch | Yes | |||||
| Ground fault monitoring | Yes | |||||
| Integrated all-pole sensitive leakage current monitoring unit | Yes | |||||
| PHYSICAL | ||||||
| Machine Dimension (W*H*D)(mm) | 402*378*195 | |||||
| Package Dimension (W*H*D)(mm) | 493*315*468 | |||||
| N.W(kg) | 15.5 | |||||
| G.W(kg) | 19.1 | |||||
| INTERFACE | ||||||
| DC connection | H4/MC4 | |||||
| AC connection | Connector | |||||
| Display | LED | |||||
| Communication interfaces | WIFI/RS485/GPRS(opt) | |||||
| ENVIRONMENT | ||||||
| Ingress protection rating | IP66 | |||||
| Humidity | 0-100% | |||||
| Operating temperature range | -25°C~+60°C With derating above 45°C | |||||
| Cooling concept | Natural | |||||
| Noise emission(typical)[dB] | ≤35dB(A) | |||||
| Self-consumption night | <1W | |||||
| Topology | Transformerless | |||||
| Altitude | 4000m | |||||
| OTHERS | ||||||
| Topology | transformerless | |||||
| Warranty | Standard 5years/10 years(opt.) | |||||
