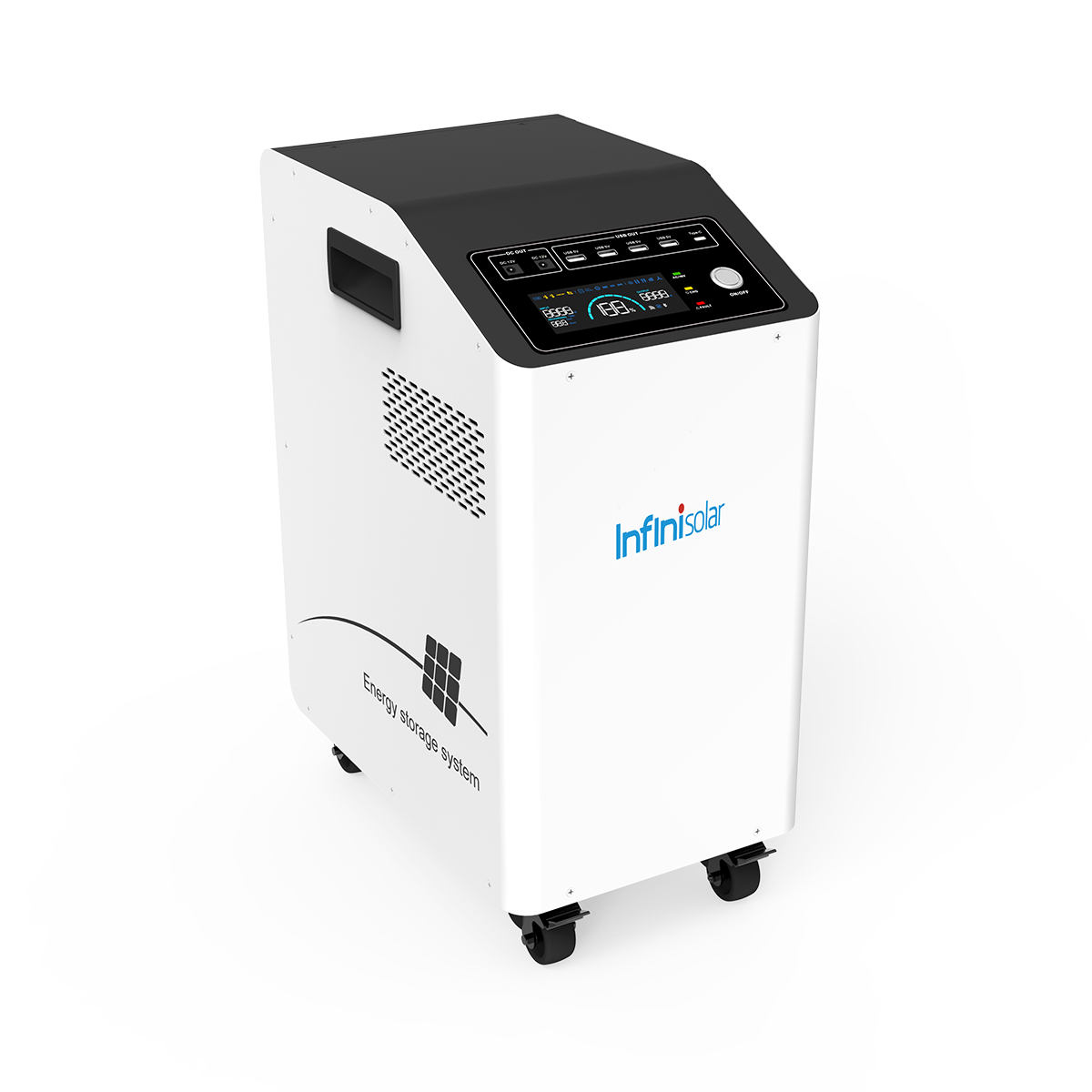

HMP800 Home Solar Energy Storage System 1.2-3kW
All-in-one ESS 12V, 24V | 960Wh~6400Wh
HMP800 series all-in-one energy storage solution, support 1~3KW output for different load appliances. It’s based on the original cabinet design, stacked with solar energy storage lithium battery 960wh~6400wh, and built in battery protection system, fully retain the use of load power in applications of residential, school, commercial and public utility area.
Description
Product Description
■ 1.2~3KW Pure sine wave inverter
■ Energy storage 1280wh~7168wh Optional
■ 4000+ Charge cycle @ 80% DOD,25°C
■ 24/7 Plug & play
■ 11 Output ports for DC load
■ Built in Multi safety protection
| MODEL | HMP800-1212 | HMP800-1512 | HMP800-2024 | HMP800-3024 | ||
| INVERTER | ||||||
| Rated power | 1200W | 1500W | 2000W | 3000W | ||
| Surge power | 2400W | 3000W | 4000W | 6000W | ||
| Output voltage waveform | Pure sine wave | |||||
| Output voltage regulation | 220~240Vac(setting) | |||||
| Output frequency | 50Hz / 60Hz (±0.2Hz) | |||||
| Peak efficiency | 90~93% | |||||
| Nominal DC input voltage | 12Vdc (±0.3) | 12Vdc (±0.3) | 24Vdc (±0.3) | 24Vdc (±0.3) | ||
| Standby Consumption | < 25W | |||||
| PV INPUT | ||||||
| Max solar power input | 900W | 900W | 1800W | 1800W | ||
| PV max charging current | 60A (±3A) | 60A (±3A) | 60A (±3A) | 60A (±3A) | ||
| Combined charging current | 70A (±4A) | 70A (±4A) | 80A (±4A) | 80A (±4A) | ||
| Max efficiency | 98.0% max | |||||
| PV array open circuit voltage | 105VDC | 145VDC | 145VDC | 160VDC | ||
| PV Array MPPT Voltage Range | 15~105V | 15~130V | 30~120VDC | 30~128VDC | ||
| AC INPUT | ||||||
| AC input voltage | 230Vac ±5% | |||||
| Acceptable input voltage range | 90-280VAC | |||||
| Nominal input frequency | 50Hz / 60Hz (Auto detection) | |||||
| Transfer time | 10ms typical (UPS, VDE); 20ms typical (APL) | |||||
| AC CHARGE | ||||||
| Charging current @ Nominal input voltage |
10A (±4A) | 20A/(±4A) | 20A/(±4A) | 60A (±4A) | ||
| Charging Algorithm | 4-step (Li) | |||||
| OUTPUT | ||||||

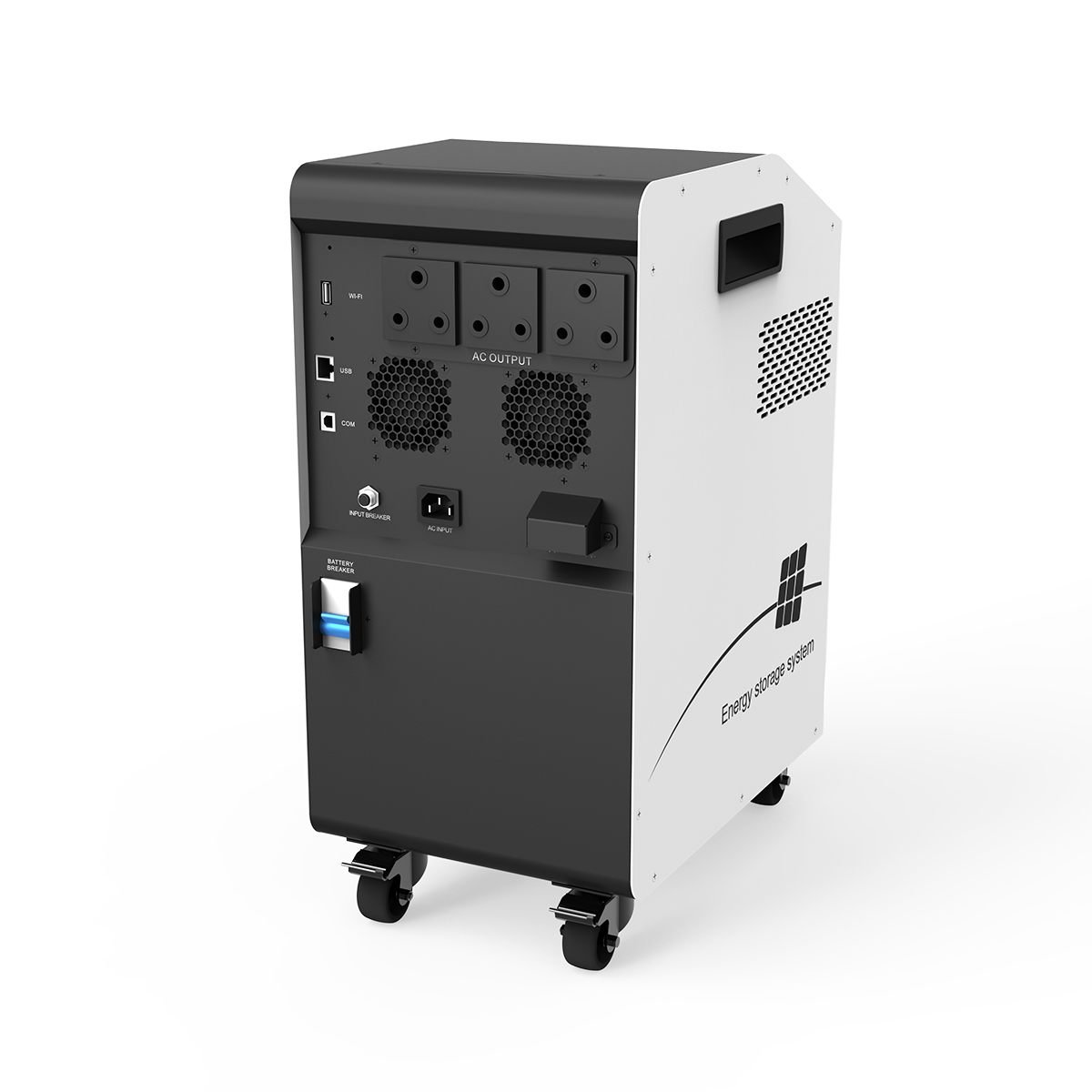

| AC output | 230Vac (Socket *4pcs) | |||||
| Type-C | DC output*1pcs | |||||
| USB (5V 2.4A) | DC output*4pcs | |||||
| USB (12V 1A) | DC output*2pcs | |||||
| LITHIUM BATTERY | ||||||
| Energy | 1280Wh | 1280Wh | 2560Wh | 3072Wh | 7168Wh | |
| Nominal voltage | 12.8V | 12.8V | 25.6V | 25.6V | ||
| Battery capacity | 100Ah | 100Ah | 100Ah | 120Ah | 280Ah | |
| Protection board | 100A | 150A | 100A | 150A | ||
| Standard charging & discharge current | 50A | 50A | 50A | 50A | 50A | |
| Operating temperature | Charge | 0~45°C | ||||
| Discharge | -10~60°C | |||||
| DIMENSION | ||||||
| Machine Dimension (W*H*D)(mm) | 359*499*234 | 420*497*280 | 460*539*411 | |||
| Package Dimension (W*H*D)(mm) | 460*560*335 | 522*655*382 | 570*702*521 | |||
| N.W(kg) | 21 | 25 | 30 | 36 | 66 | |
| G.W(kg) | 26 | 30 | 41 | 45 | 80 | |
| Standard Warranty | Inverter: 2 years ; Lithium battery: 3 years | |||||
