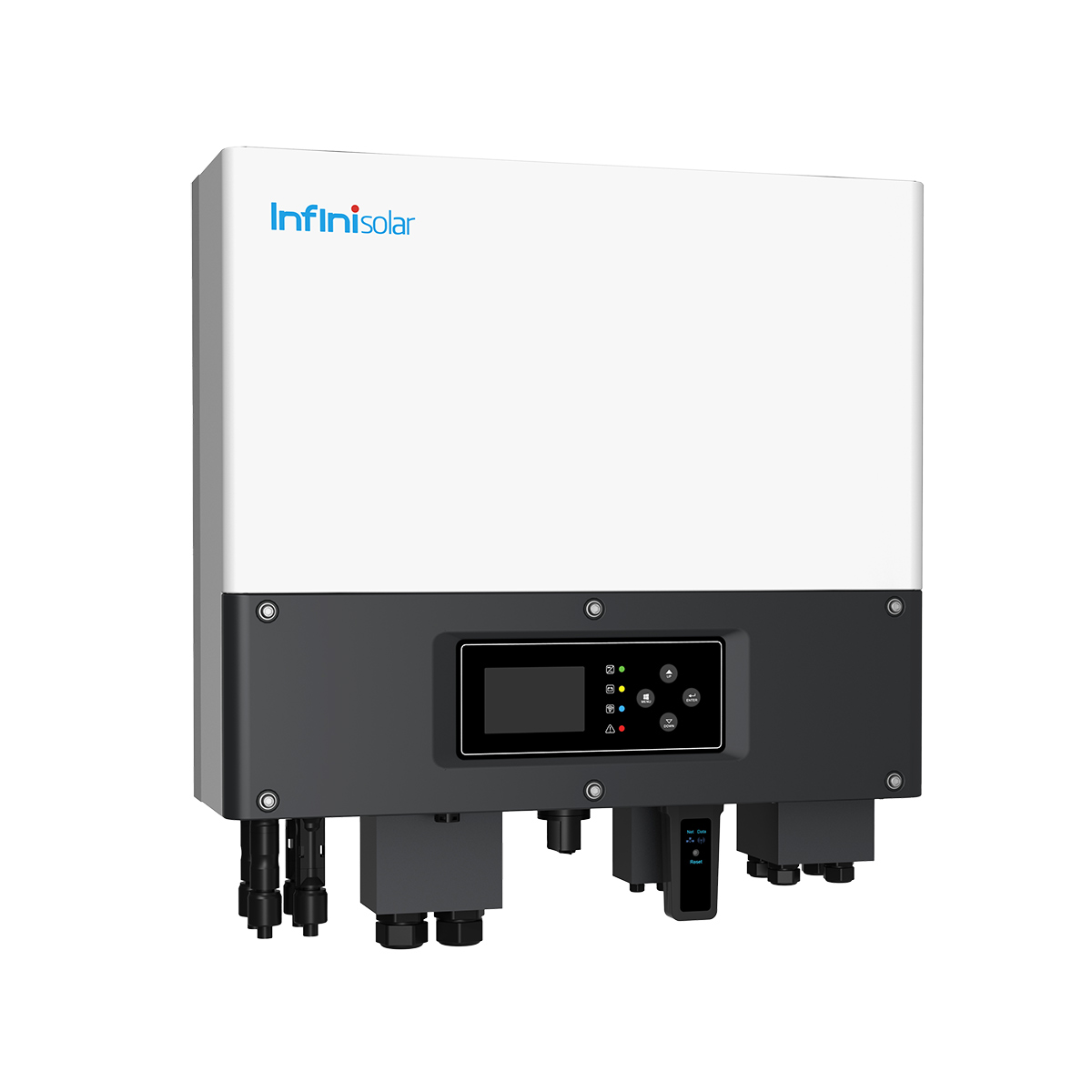

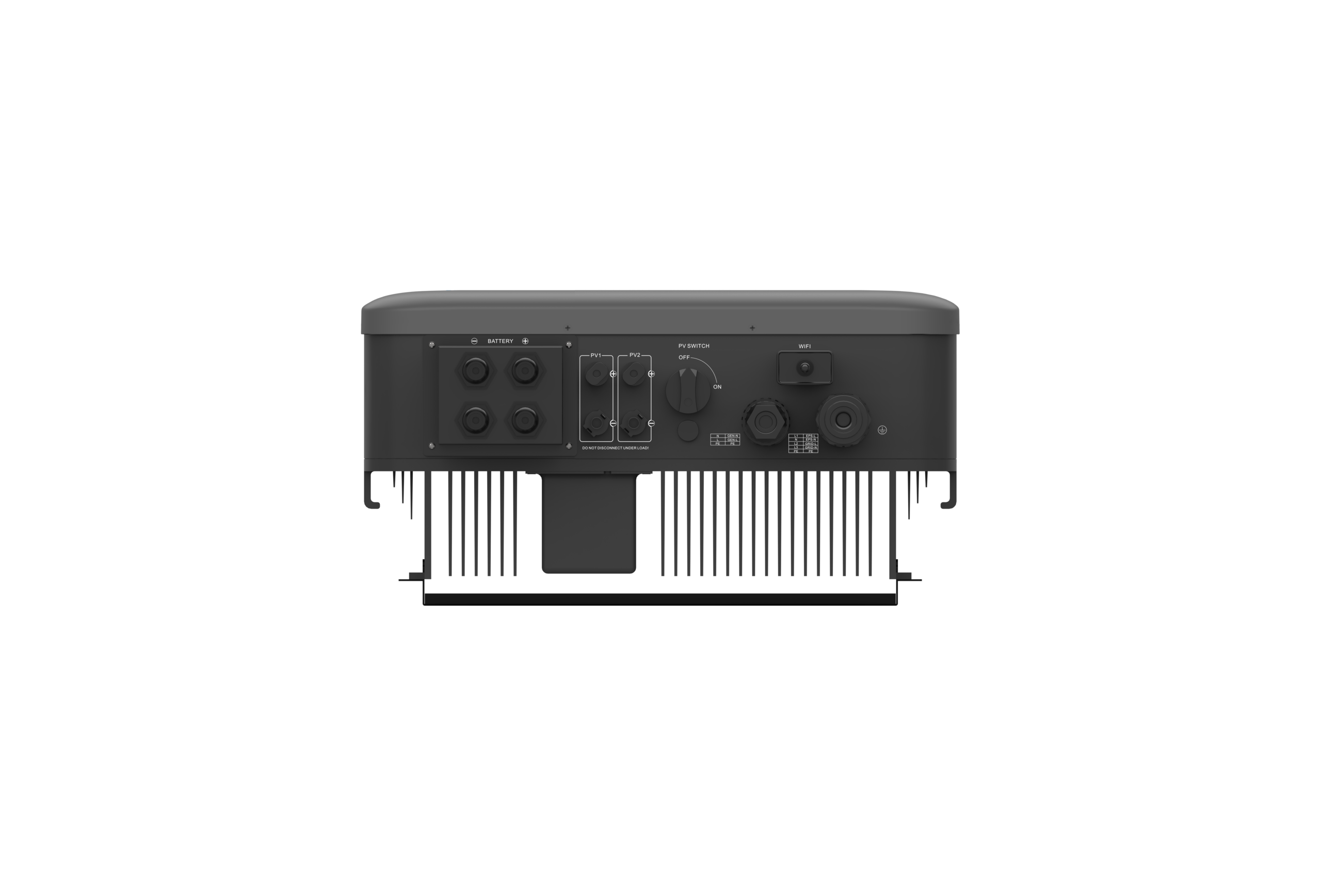

HM118 Hybrid Solar Inverter 3.6-6KW
Single phase hybrid inverter DC 48V | PV 500V
This is a flexible and intelligent energy storage solar inverter with a wide range of MPPT Voltage.
Combining functions of off grid and on grid. This hybrid solar inverter can power all kinds of appliances in home or office, and can also be used in power stations.
Description
Product Description
■ Multiple operation modes: Grid-tie,off grid with storage backup
■ IP65 water-proof and dust-proof
■ MPPT voltage range 120-500V
■ Support LCD display&Smart LCD setting
■ Available Export control CT sensor function
■ Multiple communications:USB,RS485,GPRS and wifi etc
■ Full protection function:Over-voltage,over-frequency, over-current, over-temperature,and AC short-circuit automatic protection
■ Intelligent BMS battery management function
■ Fanless low-noise design
■ Wifi monitoring
| MODEL | HM118-3648 | HM118-4048 | HM118-4648 | HM118-5048 | HM118-6048 |
| Rated power | 3600W | 4000W | 4600W | 5000W | 6000W |
| Nominal Battery System Voltage | 48V | ||||
| PV INPUT(DC) | |||||
| Maximum recommended DC power | 4000W | 5000W | 5500W | 6000W | 7000W |
| Nominal DC operating voltage | 360V | ||||
| Maximum DC voltage | 500V | ||||
| MPPT voltage range | 120V~500V | ||||
| Maximum input current | 15A / 15A | ||||
| No.of MPP tracker | 2 | ||||
| Strings per MPP tracker | 1 | ||||
| INVERTER INPUT/ OUTPUT(AC) | |||||
| Nominal AC input/ output power | 3600W | 4000W | 4600W | 5000W | 6000W |
| Nominal input/ output voltage; range | 220/230/240V;180-280V | ||||
| AC grid frequency; range | 50/60Hz; 45~55/55-65Hz | ||||
| Nominal input/ output current | 15.6A | 17.5A | 20A | 21.7A | 26A |
| Maximum input/ output current | 16A | 18.1A | 20.8A | 22.7A | 27.2A |
| Inrush current (spike/duration) | 57.5A/5.2us | ||||
| Total harmonic distortion i(THDi) | <3% | ||||
| Power factor at rated power | 1 | ||||
| Displacement power factor | 0.8leading ～ 0.8lagging | ||||
| Grid type | Single phase | ||||
| BATTERY MODE OUTPUT(AC) | |||||
| Output Rated Power | 3600W | 4000W | 4600W | 5000W | 6000W |
| Nominal output voltage; accuracy range | 230±1% | ||||
| Output ferequency; accuracy range | 50/60Hz (optional)±0.2% | ||||
| Output rated current | 15.6A | 17.5A | 20A | 21.7A | 26A |
| Output waveform | Pure sine wave | ||||
| Peak power | 5400W,10s | 6000W,10s | 6900W,10s | 7500W,10s | 9000W,10s |
| Total harmonic distortion v (linear load) | <3% | ||||
| BATTERY & CHARGER | |||||
| Battery type | Lead-acid battery / Lithium battery | ||||
| Battery voltage | 48V | ||||
| Battery voltage range | 40~60V | ||||
| Charging curve | 3-stage adaptive with maintenance | ||||
| Protection | Over-current protection / Over-temperature protection | ||||
| Maximum charging power | 3600W | 4000W | 4600W | 5000W | 6000W |
| Maximum charging currernt | 75A | 85A | 95A | 100A | 125A |
| EFFICIENCY | |||||
| Maximum efficiency | 97.1% | ||||
| Euro-efficiency | 96.5% | ||||
| MPPT efficiency | 99.8% | ||||
| PROTECTION DEVICES | |||||
| DC switch rating for each MPPT; Grid monitoring; Output over current protection; Output overvoltage protection-varistor; Ground fault monitoring; Integrated all-pole sensitive leakage current |
|||||
| GENERAL | |||||
| Machine Dimension (W*H*D)(mm) | 420*480*215 | ||||
| Package Dimension (W*H*D)(mm) | 610*327*595 | ||||
| N.W(kg) | 30 | ||||
| G.W(kg) | 32 | ||||
| DC connection | H4 / MC4 | ||||
| AC connection | Terminal Block | ||||
| Display | LED+LCD | ||||
| Communication interfaces | Wi-Fi / USB / GPRS / RS485 | ||||
| Ingress protection rating | IP65 | ||||
| Humidity | 0~95% RH(No codensing) | ||||
| Operating temperature range | -20℃ +60℃ With derating above 45℃ | ||||
| Cooling concept | Natural | ||||
| Altitude | <3000m | ||||
